PISTON, PISTON RING, PISTON PIN CONSTRUCTION [F2]

id011094100600

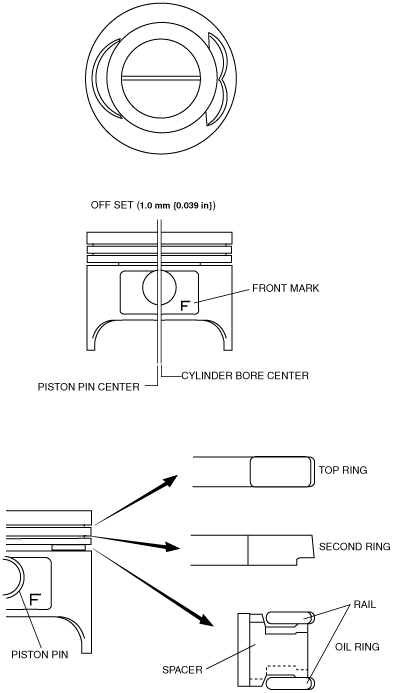

• The offset pistons are used to reduce piston slapping noise.

• The fitting of the piston, connecting rod, and piston pin is semi-floating.

• The following piston rings are used.

Top ring: inner bevel ring, second ring: taper under cut, oil ring: rail and spacer.

absggn00000013
