CONNECTING ROD, CONNECTING ROD BEARING CONSTRUCTION [G6]


id011095100700

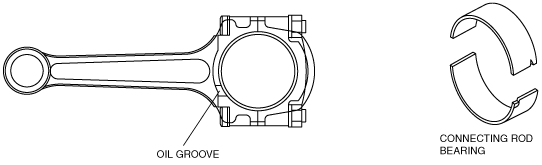

•  An oil groove is provided in the large end of each connecting rod.
•  Both upper and lower connecting rod bearing are made of aluminum alloy and are identical.
absggn00000030
