TIMING CHAIN, CAMSHAFT SPROCKET, TIMING SPROCKET CONSTRUCTION [G6]
id011095112500
• The timing chain is a single roller type with chromized rollers for reduced stretch and improved reliability at high engine speeds.
• The timing chain has no replaceable links. It must be removed and installed as an assembly.
• The timing gear is made of sintered alloy for high durability.

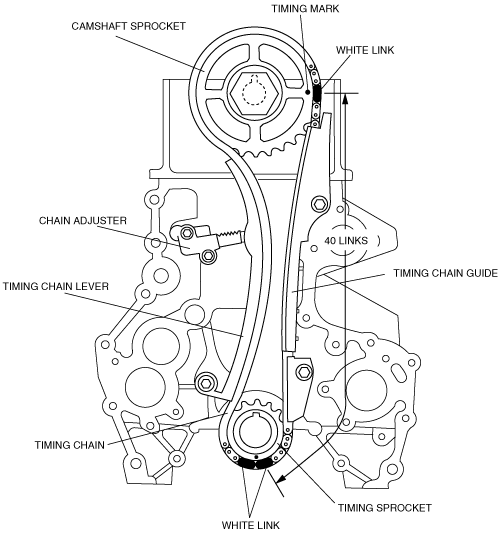

• When installing the timing chain, align the alignment mark on the timing sprocket with the white link on the timing chain.
• The camshaft sprocket is made of sintered alloy for high durability.
• When installing the timing chain, align the specified alignment mark on the camshaft sprocket with the white link on the timing chain.
• The timing chain lever and timing chain guide are made of plastic and the friction surface of the chain lever is covered with synthetic rubber for durability and reduced engine noise and vibration.
