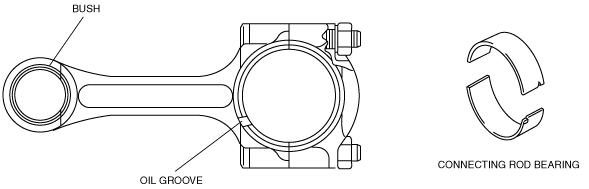

CONNECTING ROD, CONNECTING ROD BEARING CONSTRUCTION [WLT-1, WLT-2]
id011096100700
• The connecting rod is made of forged manganese steel.
• Plastic region tightening method has been adopted for connecting rod and connecting rod cap component.
• The bushing is installed to the small end of the connecting rod and the oil groove is equipped to the large end.
• The connecting rod bearing is made of aluminum alloy.
