CYLINDER HEAD CONSTRUCTION [WL-3]


id0110b5100300

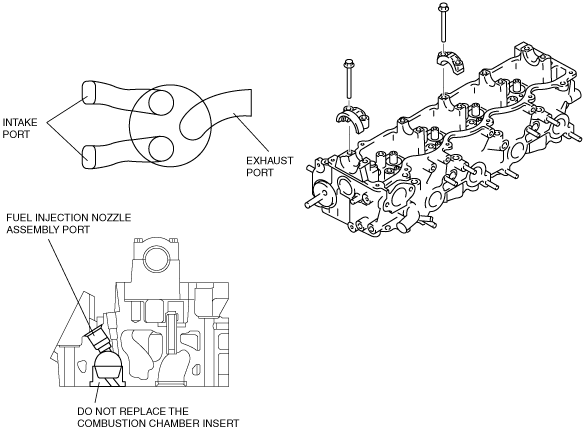

•  The port layout is a cross-flow type with two intake valves and one exhaust valve per cylinder.
•  The swirl type combustion chamber is adopted to improve combustion efficiency. The combustion chamber insert is not replaceable.
•  A plastic region tightening method has been adopted for cylinder head and cylinder block component.
