CYLINDER HEAD COVER, CYLINDER HEAD COVER GASKET CONSTRUCTION [WL-3]


id0110b5102700

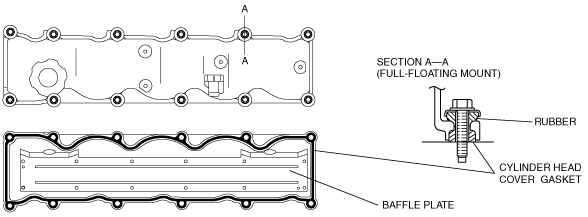

•  The cylinder head cover is made of aluminum alloy with a baffle plate on its lower side for blow-by gas separation.
•  A rubber ring type cylinder head cover gasket has been adopted. In addition, a full-floating mount has been adopted for the cylinder head cover installation, reducing noise and vibration.
