•  A trochoid gear type oil pump with superior heat resistance and noise reduction has been adopted, ensuring stable discharge performance.

•  The oil pump is built into the chain cover.

•  The oil pump is directly driven by the crankshaft to reduce engine noise.

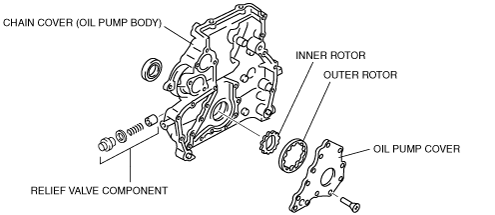

•  The oil pump consists of the chain cover, inner and outer rotors, relief valve, and oil pump cover.

•  The relief valve, which adjusts the oil pressure, is built into the chain cover.
