OIL PUMP REMOVAL/INSTALLATION [WL-C, WE-C]
id0111b6800600
1. Disconnect the negative battery cable.
2. Drain the engine oil. (See ENGINE OIL REPLACEMENT [WL-C, WE-C].)
3. Remove the under cover.
4. Remove the oil pan. (See OIL PAN REMOVAL/INSTALLATION [WL-C, WE-C].)
5. Remove the timing belt. (See TIMING BELT REMOVAL/INSTALLATION [WL-C, WE-C].)
6. Remove the crankshaft pulley. (See FRONT OIL SEAL REPLACEMENT [WL-C, WE-C].)

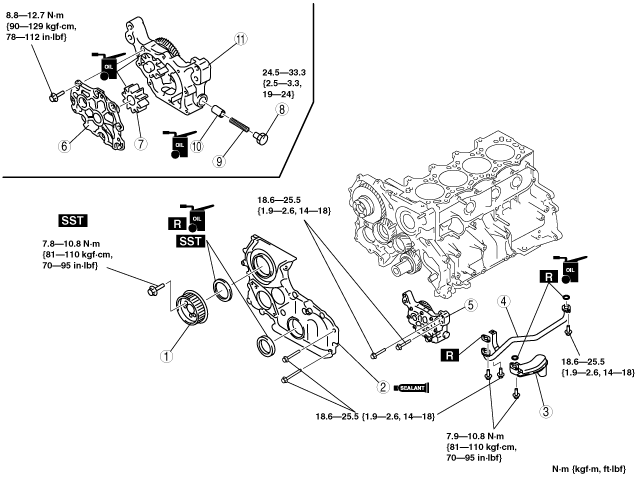

7. Remove in the order shown in the figure.
8. Install in the reverse order of removal.
9. Fill with the specified amount and type of engine oil. (See ENGINE OIL REPLACEMENT [WL-C, WE-C].)
10. Start the engine and inspect for engine oil leakage.
absggw00001897
|
|
1
|
Fuel injection pump pulley
|
|
2
|
Timing gear cover
|
|
3
|
Oil strainer
|
|
4
|
Oil pipe
|
|
5
|
Oil pump
|
|
6
|
Oil pump cover
|
|
7
|
Driven gear
|
|
8
|
Plug
|
|
9
|
Plunger spring
|
|
10
|
Control plunger
|
|
11
|
Oil pump body
|
Timing Gear Cover Removal Note
1. Remove the timing gear cover by using a separator tool.
absggw00001898
|
2. Remove the oil seal by using a screwdriver protected with a rag,
absggw00001899
|
Oil Pump Cover Installation Note
1. Tighten the bolts in two or three steps in the order shown.
absggw00001900
|
Oil Pipe Installation Note
1. Tighten the bolts in two or three steps in the order shown.
absggw00001901
|
Timing Gear Cover Installation Note
1. Apply silicone sealant to the timing gear cover as shown.
absggw00001902
|
2. Tithe bolts in two or three steps in the order shown.
absggw00001903
|
3. Apply soapy water along the perimeter of the new oil seal.
4. Push the oil seal slightly in by hand.
5. Tap the oil seal in evenly using the SST and a hammer.
absggw00001904
|
6. To ensure that the oil seal is installed correctly, measure the distance between the end of the timing gear cover and the face of the oil seal.
