THERMOSTAT REMOVAL/INSTALLATION [G6]

id011295801200

Warning

•  Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

1.  Drain the engine coolant.(See ENGINE COOLANT REPLACEMENT [G6].)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  Fill the radiator with the specified amount and type of engine coolant. (See ENGINE COOLANT REPLACEMENT [G6].)

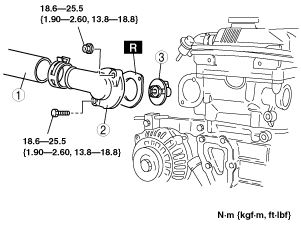

arnffw00000654

1	Upper radiator hose
2	Thermostat cover
3	Thermostat (See Thermostat Installation Note)

Thermostat Installation Note

1.  Install the thermostat into the cylinder head with the jiggle pin at the top.

arnffw00000655

2.  Install a new gasket with the green print side facing the cylinder head.

arnffw00001591
