RADIATOR REMOVAL/INSTALLATION [WL-C, WE-C]

id0112b6801400

Warning

•  Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

1.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [WL-C, WE-C].)

2.  Remove in the order indicated in the table.

3.  Remove the oil hose. (AT)

4.  Install in the reverse order of removal.

5.  Fill the radiator with the specified amount and type of engine coolant.(See ENGINE COOLANT REPLACEMENT [WL-C, WE-C].)

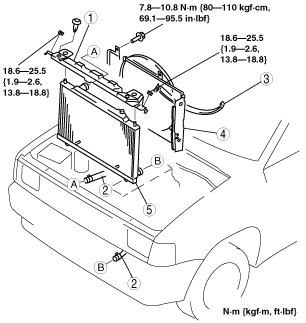

absggw00001970

1	Radiator upper seal
2	Radiator hose
3	Lower radiator cowling
4	Radiator cowling
5	Radiator
