INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [F2]

id011394801900

Warning

•  When the engine and intake-air system are hot, they can badly burn. Turn off engine and wait until they are cool before removing the intake-air system.

•  Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.

•  Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the following “Fuel Line Safety Procedures”.

1.  Complete the "BEFORE REPAIR PROCEDURE" . (See BEFORE REPAIR PROCEDURE [F2].)

2.  Drain the engine coolant from the radiator. (See ENGINE COOLANT REPLACEMENT [F2].)

3.  Disconnect the negative battery cable.

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

6.  Adjust the accelerator cable. (See ACCELERATOR CABLE INSPECTION/ADJUSTMENT [F2].)

7.  Complete the "AFTER RFPAIR PROCEDURE" . (See AFTER REPAIR PROCEDURE [F2].)

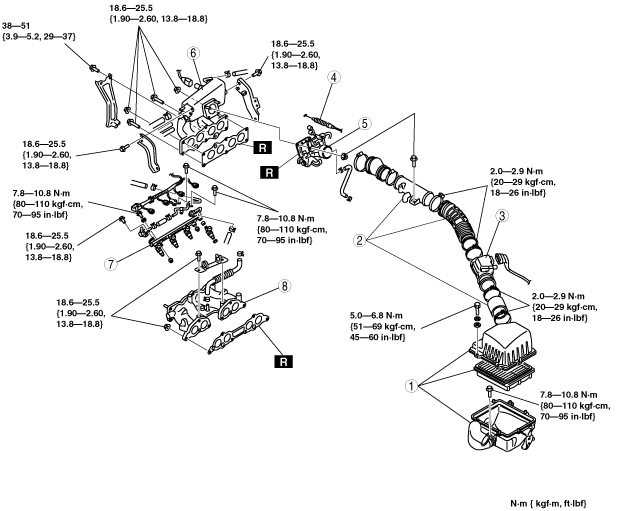

absggw00000255

1	Air cleaner component
2	Air intake hose
3	MAF sensor
4	Accelerator cable
5	Throttle body component
6	Dynamic chamber
7	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [F2].)
8	Intake manifold
