VARIABLE SWIRL CONTROL (VSC) VALVE ACTUATOR INSPECTION (Australian, European (L.H.D. U.K.) specs.) [WL-C, WE-C]

id0113b6807500

1. Disconnect the vacuum hose from the vacuum pipe.

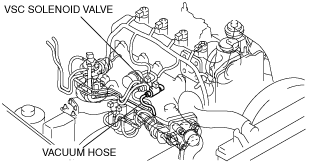

dbg113bwcr020

2. Connect a vacuum pump to the vacuum pipe.

3. Apply vacuum and verify that the rod moves as specified.

• If not as specified, replace the intake manifold.

Specification

Vacuum (kPa {mmHg, inHg})	Rod movement
Approx. –3.6 {–27, –1.1}	Starts to move
Above –27.9 {–209, –8.2}	Fully pulled
