PRESSURE REGULATOR CONTROL (PRC) SOLENOID VALVE INSPECTION [F2]

id011494819000

Simulation Test

1.  Carry out the “Pressure Regulator Control (PRC) Inspection”. (See ENGINE CONTROL SYSTEM OPERATION INSPECTION [F2].)

•  If not as specified, perform the further inspection for the PRC solenoid valve.

Airflow Inspection

Note

•  Perform the following test only when directed.

1.  Disconnect the negative battery cable.

2.  Remove the PRC solenoid valve.

3.  Inspect airflow between the ports under the following conditions.

absggw00001140

absggw00000209

•  If not as specified, replace the PRC solenoid valve.

•  If as specified but the “Simulation Test” is failed, inspect for the following:

―  Vacuum hose improper routing, kinks or leakage

Open Circuit

•  Ground circuit (PRC solenoid valve connector terminal B and PCM connector terminal 2T through common connector)

•  Power circuit (PRC solenoid valve connector terminal A and main relay connector terminal D through common connector)

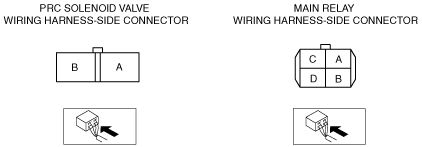

arnffw00001144

absggw00000763

Short Circuit

•  PRC solenoid valve connector terminal B and PCM connector terminal 2T through common connector to GND

4.  Repair or replace faulty areas.

5.  Install the PRC solenoid valve.

6.  Reconnect the negative battery cable.
