FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [G6]

id011495801000

Warning

• Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes.To prevent this, do not damage the fuel pump unit when removing or installing.

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

Freestyle 4×2, double cab 4×2

absggw00000179

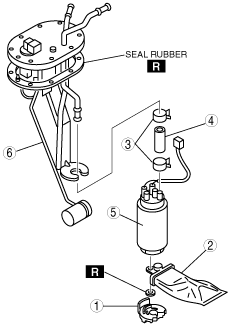

Freestyle 4×4, double cab 4×4

absggw00000180

1

Rubber mount

2

Fuel filter (low-pressure)

3

Clamp

4

Fuel hose

5

Fuel pump body

6

Fuel gauge sender unit

1	Rubber mount
2	Fuel filter (low-pressure)
3	Clamp
4	Fuel hose
5	Fuel pump body
6	Fuel gauge sender unit
