FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [G6]

id011495803000

1. Complete the “BEFORE REPAIR PROCEDURE”. (See BEFORE REPAIR PROCEDURE [G6].)

2. Disconnect the negative battery cable.

3. Remove in the order indicated in the table.

4. Install in the reverse order or removal.

5. Complete the “AFTER REPAIR PROCEDURE”. (See AFTER REPAIR PROCEDURE [G6].)

arnffw00000980

Fuel Filter (High-pressure) Removal Note

1. Before removing the fuel filter (high-pressure), paint marks on the fuel filter (high-pressure) and fuel filter bracket for correct disassembly.

absggw00000182

Fuel Filter (High-pressure) Installation Note

Replacing the fuel filter (high-pressure)

1. Paint a mark on the new fuel filter (high-pressure) at the same spot as the removed fuel filter (high-pressure).

2. Align the paint marks and install the fuel filter (high-pressure) as shown.

absggw00000183

Replacing the fuel filter bracket

1. Paint a mark on the new fuel filter bracket at the same spot as the removed fuel filter bracket.

2. Align the paint marks and install the fuel filter bracket as shown.

absggw00001877

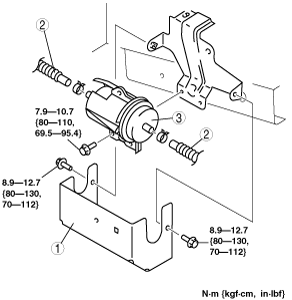

1	Protector
2	Fuel hose
3	Fuel filter (high-pressure) (See Fuel Filter (High-pressure) Removal Note.) (See Fuel Filter (High-pressure) Installation Note.)
