FUEL PUMP RELAY INSPECTION [G6]

id011495818900

Simulation Test

1.  Carry out the “Fuel Pump Operation Inspection”“Fuel Pump Control Inspection”. (See ENGINE CONTROL SYSTEM OPERATION INSPECTION [G6].)

Continuity Inspection

Note

•  Perform the following test only when directed.

1.  Disconnect the negative battery cable.

2.  Remove the fuel pump relay located under the passenger’s side front side trim.

absggw00000195

3.  Inspect for continuity between the fuel pump relay terminals.

•  If not as specified, replace the fuel pump relay.

•  If as specified but the “Simulation Test“ is failed, inspect for the following:

―  Fuel pump unit malfunction

Open Circuit

•  ground circuit (fuel pump relay connector terminal B and PCM connector terminal 1H through common connector)

•  ground circuit (fuel pump relay connector terminal D and fuel pump unit connector terminal B through common connector)

•  Power circuit (fuel pump relay connector terminal A or C and ignition switch connector terminal lG1 through common connector)

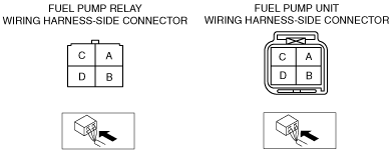

arnffw00001051

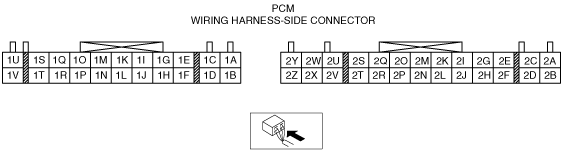

arnffw00001052

Short Circuit

•  Fuel pump relay connector terminal B and PCM connector to terminal 1H through common connector to ground

•  Fuel pump relay connector terminal D and fuel pump unit connector terminal B through common connector to ground

4.  Repair or replace faulty areas.

5.  Install the fuel pump relay.

6.  Reconnect the negative battery cable.
