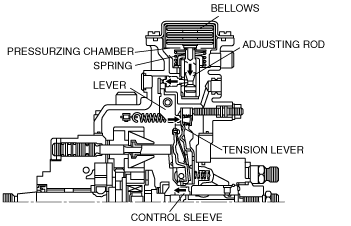

•  Atmospheric pressure is introduced into the pressurizing chamber in the aneroid compensator.

•  When the pressure exceeds the sat load of the spring, the bellows is pressed down and the adjusting rod moves down. As the adjusting rod moves down, a lever which is in contact with the tapered section of the rod moves in the direction shown.

•  According to this movement, the tension lever moves to cause the sliding motion of the control sleeve in the fuel decrease direction.
