FUEL SYSTEM STRUCTURAL VIEW [WLT-1, WLT-2]

id011496100200

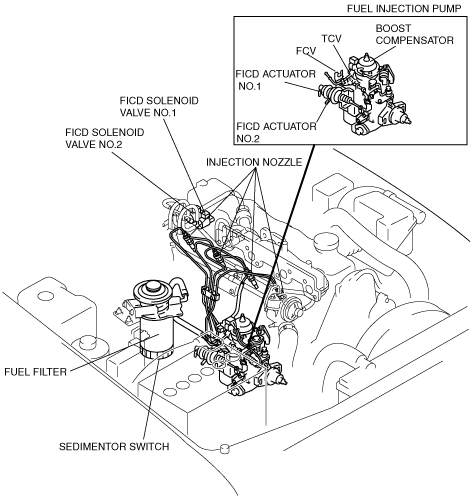

Engine Room Side

absggn00000160

Fuel Tank Side

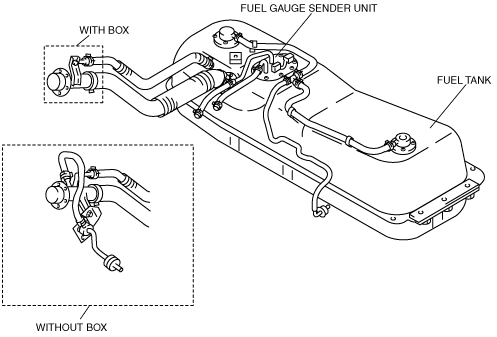

Double cab 4x2, Freestyle cab 4x2

absggn00000132

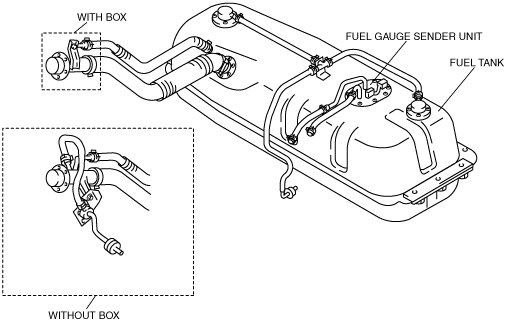

Regular cab, Double cab 4x4, Freestyle cab 4x4

absggn00000133
