FUEL FILTER REMOVAL/INSTALLATION [WLT-1, WLT-2]

id011496804300

1.  Disconnect the negative battery cable.

2.  Complete the “BEFORE REPAIR PROCEDURE”. (See BEFORE REPAIR PROCEDURE [WLT-1, WLT-2].)

3.  Disassemble in the order indicated in the table.

4.  Assemble in the reverse order of removal.

5.  Complete the “AFTER REPAIR PROCEDURE”. (See AFTER REPAIR PROCEDURE [WLT-1, WLT-2].)

6.  Bleed air from the fuel filter.

7.  Start the engine and verify that fuel does not leak from the fuel system.

8.  If fuel leaks, reassemble the fuel filter.

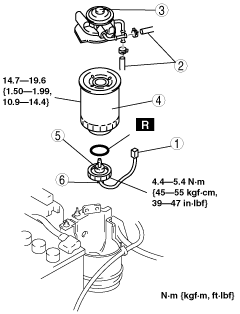

absggw00000581

1
Connector
2
Fuel hose
3
Priming pump
4
Fuel filter
(See Fuel Filter Assembly Note.)
5
Sedimentor switch
(See Sedimentor Switch Assembly Note.)
6
Drain plug


Sedimentor Switch Assembly Note

•  Apply a small amount of fuel to a new O-ring. Tighten the sedimentor switch enough to the fuel filter by hand.

Fuel Filter Assembly Note

•  Apply a small amount of fuel to the fuel filter O-ring.Tighten the fuel filter approx. 3/4 by hand after the O-ring contacts the priming pump.
