FUEL-INLET FILTER REMOVAL/INSTALLATION [WLT-1, WLT-2]

id011496805900

1.  Disconnect the negative battery cable.

2.  Disconnect the fuel hose connecting to the fuel‐inlet pipe.

3.  Remove in the order indicated in the table.

4.  If there is any malfunction, clean the fuel‐inlet filter.

5.  Install in the reverse order of removal.

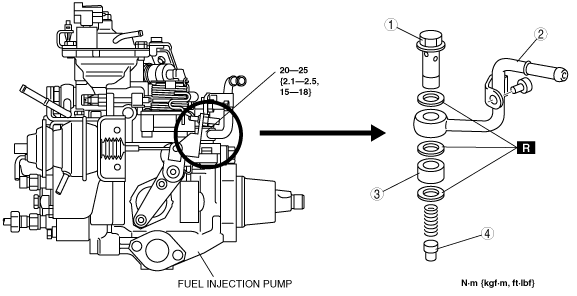

WLT-1

absggw00000304

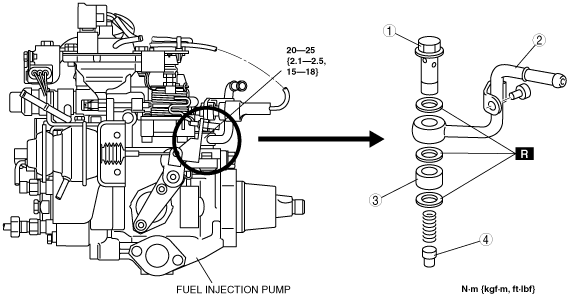

WLT-2

absggw00000305

1	Installation bolt
2	Fuel‐inlet pipe
3	Fuel‐inlet pipe insulator
4	Fuel‐inlet filter (See Fuel‐inlet Filter Removal Note.)

Fuel‐inlet Filter Removal Note

1.  Remove the spring and the fuel‐inlet filter with a steel wire makes the removal of these parts easier.
