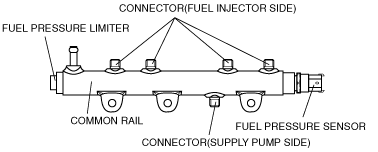

COMMON RAIL CONSTRUCTION [WL-C, WE-C]
id0114b6103000
• The PCM constantly maintains optimum pressure by monitoring the fuel pressure measurement signal from the fuel pressure sensor.
• As a consideration to safety, a fuel pressure limiter has been installed to mechanically drain fuel if the pressure goes above 195 MPa {1.988 kgf/cm2, 28,282 psi}.
