FUEL INJECTOR INSPECTION [WL-C, WE-C]

id0114b6800700

Resistance Inspection

Note

• Perform the following test only when directed.

1. Disconnect the negative battery cable.

2. Disconnect the fuel injector connectors.

3. Measure the resistance of the fuel injector using an ohmmeter.

dbg114bwb010

• If not as specified, replace the fuel injector. (See FUEL INJECTOR REMOVAL/INSTALLATION [WL-C, WE-C].)

• If as specified, carry out the “Circuit Open/Short Inspection”.

Resistance

Approx. 0.225 ohms

Circuit Open/Short Inspection

1. Disconnect the PCM connector.

2. Inspect the following wiring harnesses for open or short (continuity check).

dbg114bwb011

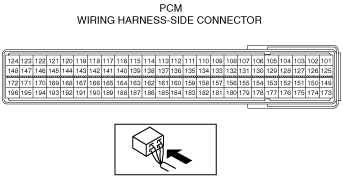

dbg114bwb009

Open circuit

• If there is no continuity, the circuit is open. Repair or replace the wiring harness.

― No.1 cylinder fuel injector terminal B and PCM terminal 174.

― No.2 cylinder fuel injector terminal B and PCM terminal 149.

― No.3 cylinder fuel injector terminal B and PCM terminal 173.

― No.4 cylinder fuel injector terminal B and PCM terminal 150.

― No.1 cylinder fuel injector terminal A and PCM terminal 125.

― No.2 cylinder fuel injector terminal A and PCM terminal 102.

― No.3 cylinder fuel injector terminal A and PCM terminal 101.

― No.4 cylinder fuel injector terminal A and PCM terminal 126.

Short circuit

• If there is continuity, the circuit is short. Repair or replace the wiring harness.

― No.1 cylinder fuel injector terminal B and body ground.

― No.2 cylinder fuel injector terminal B and body ground.

― No.3 cylinder fuel injector terminal B and body ground.

― No.4 cylinder fuel injector terminal B and body ground.

― No.1 cylinder fuel injector terminal A and body ground.

― No.2 cylinder fuel injector terminal A and body ground.

― No.3 cylinder fuel injector terminal A and body ground.

― No.4 cylinder fuel injector terminal A and body ground.

― No.1 cylinder fuel injector terminal B and power supply.

― No.2 cylinder fuel injector terminal B and power supply.

― No.3 cylinder fuel injector terminal B and power supply.

― No.4 cylinder fuel injector terminal B and power supply.

― No.1 cylinder fuel injector terminal A and power supply.

― No.2 cylinder fuel injector terminal A and power supply.

― No.3 cylinder fuel injector terminal A and power supply.

― No.4 cylinder fuel injector terminal A and power supply.
