FUEL-INLET FILTER REMOVAL/INSTALLATION [WL-C, WE-C]

id0114b6805900

1.  Disconnect the negative battery cable.

2.  Disconnect the fuel hose connecting to the fuel‐inlet pipe.

3.  Remove in the eye bolt.

Note

•  The fuel‐inlet filter cannot be removed as it is crimped to the eye bolt.

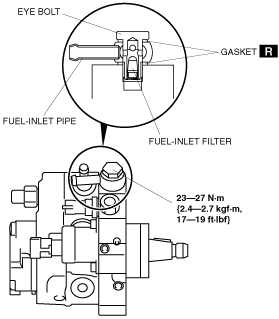

dbg114bwb004

4.  If there is any malfunction, clean the fuel‐inlet filter.

5.  Install in the reverse order of removal.
