EXHAUST SYSTEM REMOVAL/INSTALLATION [F2]

id011594800200

Warning

• When the engine and exhaust system are hot, they can badly burn. Turn off the engine and wait until they are cool before removing the exhaust system.

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

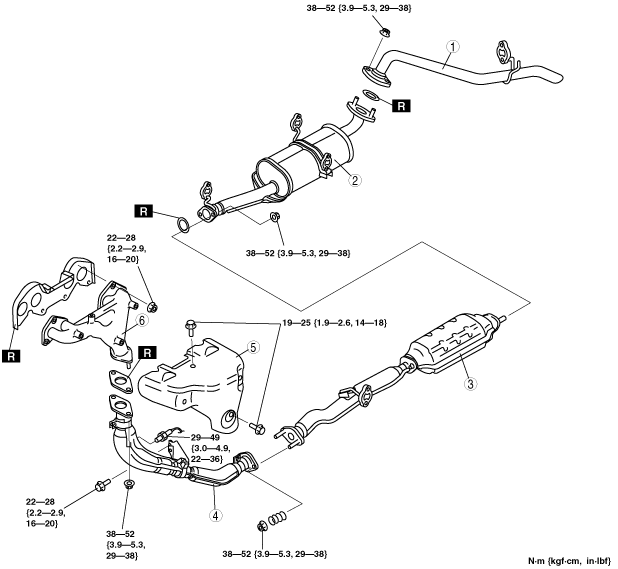

absggw00000269

1

Tail pipe

2

Main silencer

3

TWC

4

Front pipe

5

Insulator

6

Exhaust manifold

1	Tail pipe
2	Main silencer
3	TWC
4	Front pipe
5	Insulator
6	Exhaust manifold
