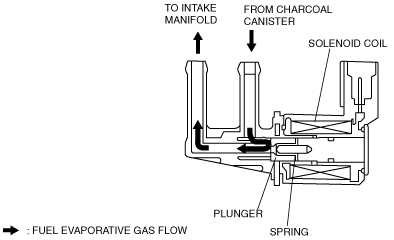

•  The purge solenoid valve opens/closes the passage in the valve according to the duty signals from the PCM and controls the fuel evaporative gas amount taken in the dynamic chamber depending on the engine running condition.
