EMISSION SYSTEM LOCATION INDEX [F2]

id011694803700

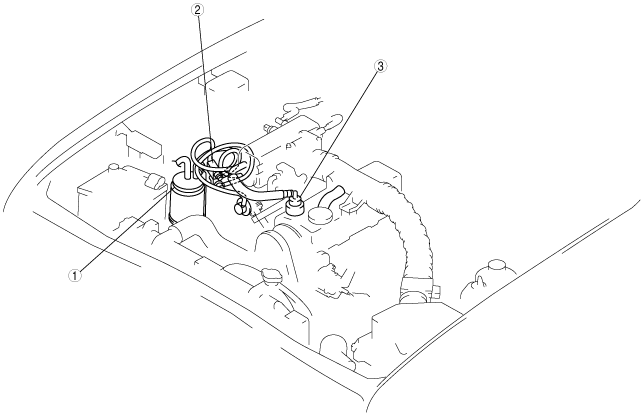

Engine Compertment Side

absggw00000270

1	Charcoal canister (See CHARCOAL CANISTER INSPECTION [F2].)
2	Purge solenoid valve (See PURGE SOLENOID VALVE INSPECTION [F2].)
3	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [F2].)

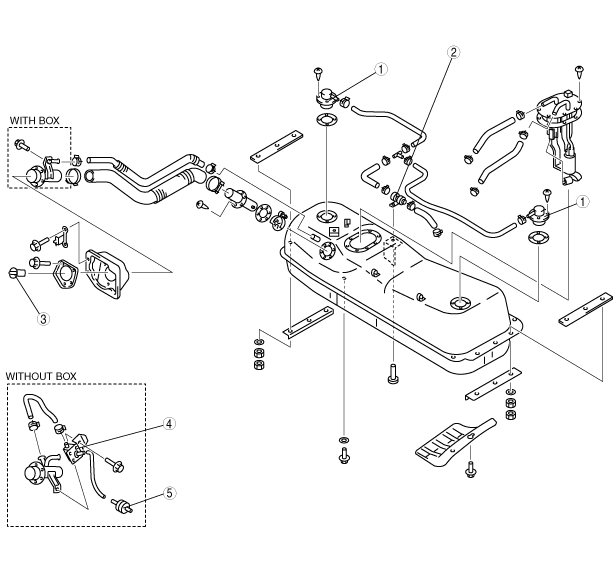

Fuel Tank Side

absggw00000543

1	Rollover valve (See ROLLOVER VALVE INSPECTION [F2].)
2	Evaporative gas check valve (two-way) (See EVAPORATIVE GAS CHECK VALVE (TWO-WAY) INSPECTION [F2].)
3	Fuel-filler cap
4	Check valve (two-way) (See CHECK VALVE (TWO-WAY) INSPECTION [F2].)
5	Evaporative chamber (See EVAPORATIVE CHAMBER INSPECTION [F2].)
