EMISSION SYSTEM LOCATION INDEX [G6]

id011695803700

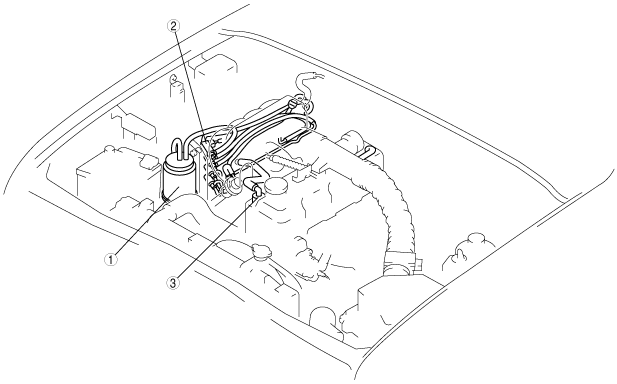

Engine Compartment Side

absggw00000197

1	Charcoal canister (See CHARCOAL CANISTER INSPECTION [G6].)
2	Purge solenoid valve (See PURGE SOLENOID VALVE INSPECTION [G6].)
3	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [G6].)

Fuel Tank Side

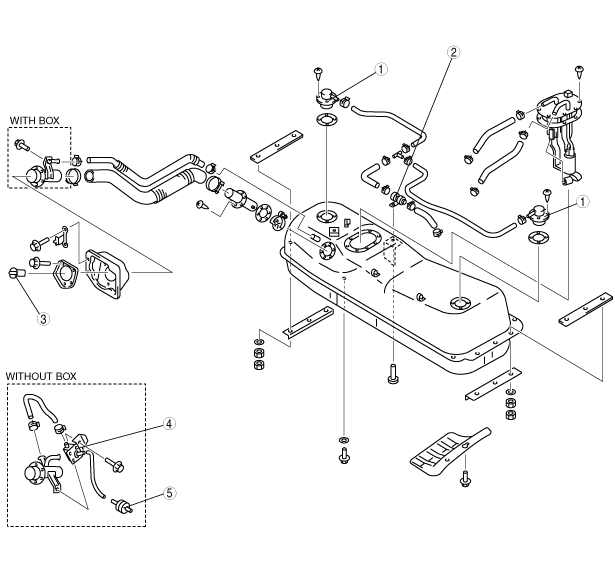

Freestyle 4×2, double cab 4×2

absggw00000541

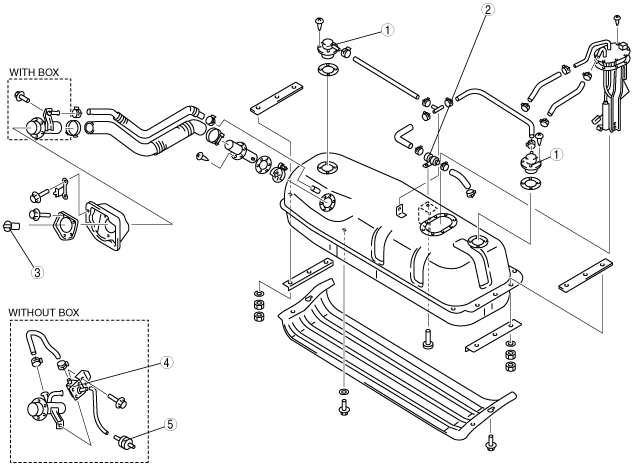

Freestyle 4×4, double cab 4×4, regular cab

absggw00000542

1	Rollover valve (See ROLLOVER VALVE INSPECTION [G6].)
2	Evaporative gas check valve (two-way) (See EVAPORATIVE GAS CHECK VALVE (TWO-WAY) INSPECTION [G6].)
3	Fuel-filler cap
4	Check valve (two-way) (See CHECK VALVE (TWO-WAY) INSPECTION [G6].)
5	Evaporative chamber (See EVAPORATIVE CHAMBER INSPECTION [G6].)
