EGR SYSTEM REMOVAL/INSTALLATION [WLT-1, WLT-2]

id011696811300

WLT-2 Only

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

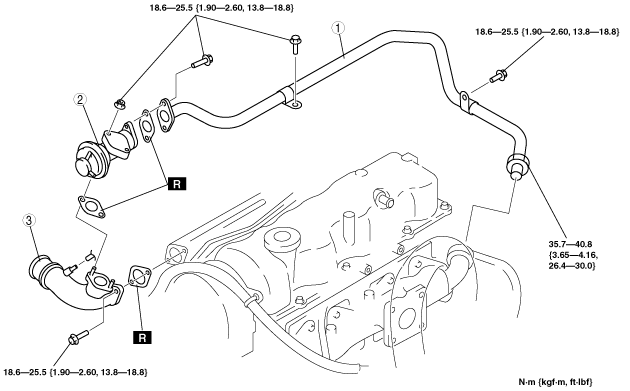

absggw00000283

1
EGR pipe
(See EGR Pipe, EGR Valve Installation Note.)
2
EGR valve
(See EGR Pipe, EGR Valve Installation Note.)
3
Intake air pipe


EGR Pipe, EGR Valve Installation Note

1.  Install the EGR pipe and EGR valve in the order shown in the figure.

arnffw00000895
