EGR SYSTEM REMOVAL/INSTALLATION [WL-3]

id0116b5811300

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

dbg116awb001

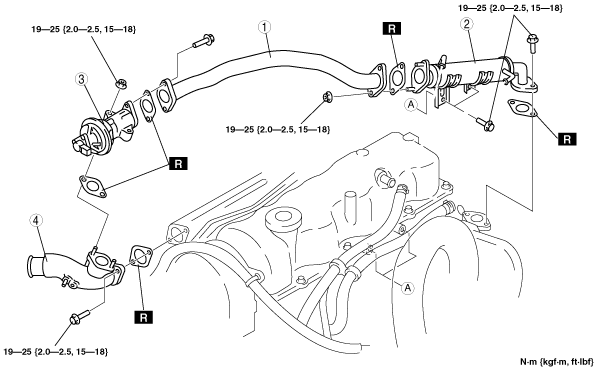

1	EGR pipe
2	EGR cooler
3	EGR valve
4	Intake air pipe

EGR system installation note

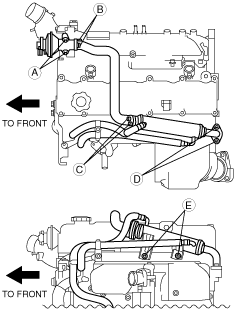

1.  Temporarily tighten bolts and nuts in order of A to E.

2.  Tighten the bolts and nuts in order of A to E.

dbg116atb010
