EGR SYSTEM REMOVAL/INSTALLATION [WL-C, WE-C]

id0116b6811300

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

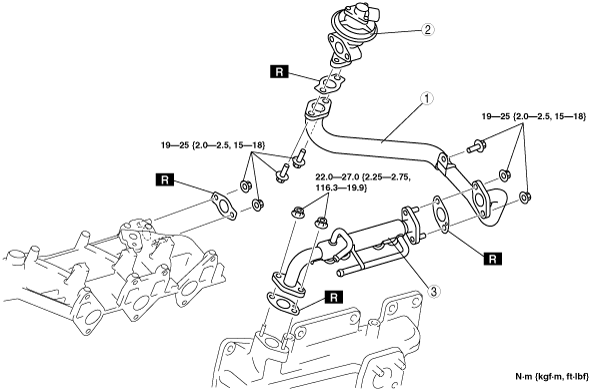

dbg116bwb702

1	EGR pipe
2	EGR cooler
3	EGR valve

EGR system installation note

1.  Temporarily tighten bolts and nuts in order of A to F.

2.  Tighten the bolts and nuts in order of A to F.

dbg116bwb703
