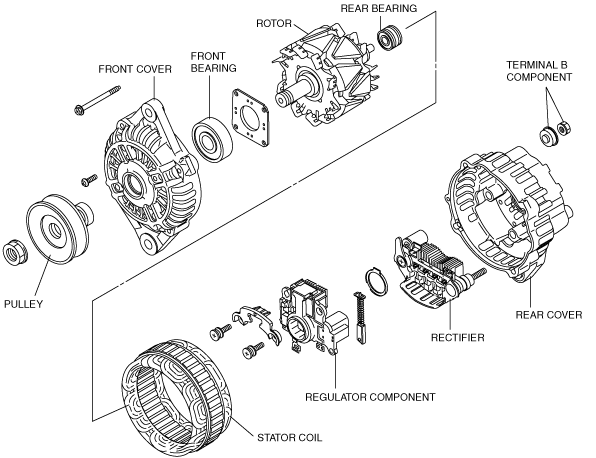

GENERATOR CONSTRUCTION [F2]
id011794102300

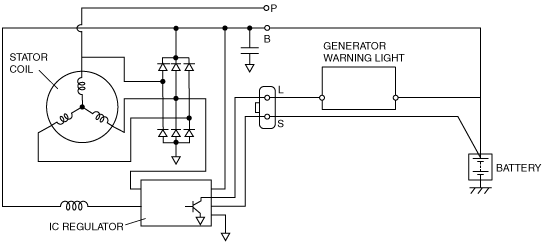

• A battery sensing type IC regulator is built into the generator which directly detects the voltage charged to the battery. Battery overcharge during light loads and charge voltage decreases during heavy loads have been prevented, improving battery reliability.
• An IC regulator with a malfunction diagnosis function is built into the generator. The generator warning light illuminates if any of the following malfunctions occurs.
-
― No power generation
― Overvoltage
― Open circuit
― Terminal B disconnected
― Terminal S disconnected
