GENERATOR DISASSEMBLY/ASSEMBLY [G6]

id011795800400

Caution

•  Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

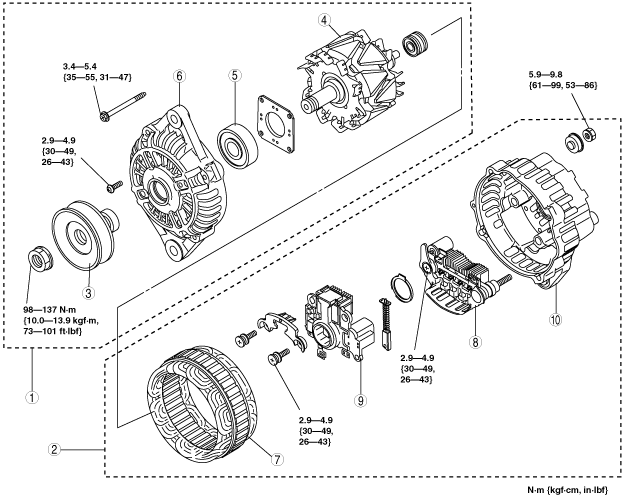

arnffw00000687

1	Rotor component
2	Stator coil component
3	Pulley
4	Rotor
5	Bearing
6	Front cover
7	Stator coil
8	Rectifier
9	Brush holder
10	Rear bracket
