BATTERY REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3, WL-C, WE-C]

id0117b3800500

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

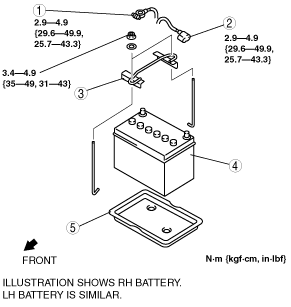

arnffw00000753

1	Negative battery cable
2	Positive battery cable (See Positive Battery Cable Installation Note (RH battery).)
3	Battery clamp (See Battery Clamp Installation Note.)
4	Battery
5	Battery tray

Battery Clamp Installation Note

1.  Install the battery clamp as shown in the figure.

arnffw00000754

Positive Battery Cable Installation Note (RH battery)

Note

•  Secure the positive battery cable to the battery clamp with the band.
