DISTRIBUTOR DISASSEMBLY/ASSEMBLY [F2]

id011894103400

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

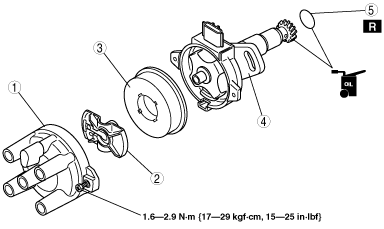

arnffw00000692

1	Cap
2	Rotor
3	Cover
4	Distributor body
5	O-ring
