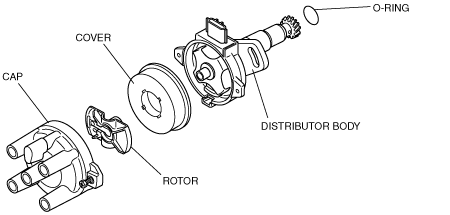

DISTRIBUTOR CONSTRUCTION [F2]

id011894145400

•  The distributor has a built-in camshaft position (CMP) sensor and sends a SGT signal to the PCM.
arnffn00000106
arnffn00000107

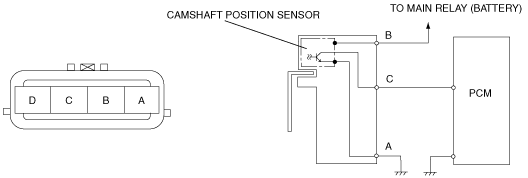

Terminal layout

Terminal

Signal
Four terminals
A
GND (to CMP sensor)
B
B+ (to CMP sensor)
C
SGT signal
D
Empty
