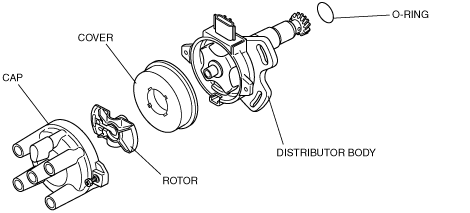

DISTRIBUTOR CONSTRUCTION [G6]

id011895145400

•  The distributor has a built-in camshaft position (CMP) sensor and sends a SGT signal to the PCM.
arnffn00000102
arnffn00000103

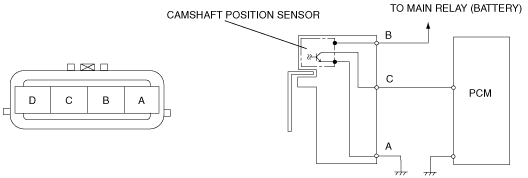

Terminal layout

Terminal

Signal
Four terminals
A
GND (to CMP sensor)
B
B+ (to CMP sensor)
C
SGT signal
D
Empty
