IGNITION COIL REMOVAL/INSTALLATION [G6]

id011895800200

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

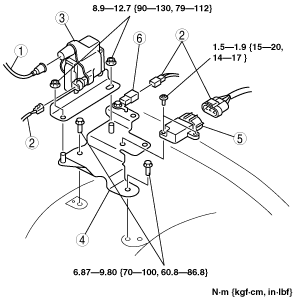

arnffw00000703

1	Center lead
2	Connector
3	Ignition coil
4	Ignition coil bracket
5	Igniter
6	Condenser
