INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [F2]

id014094802200

Note
•  Perform the following test only when directed.

1.  Remove the IAT sensor.

2.  Heat the IAT sensor using the lamp.

absggw00000379

3.  Measure the resistance of the IAT sensor.

Specification

Water temperature

(°C {°F})

Resistance (kilohm)
20 {68}
28—38
80 {176}
3.1—3.9

•  If not as specified, replace the IAT sensor.
•  If there is no malfunction, but PID valve is out of specification, inspect as follows and repair or replace as necessary.

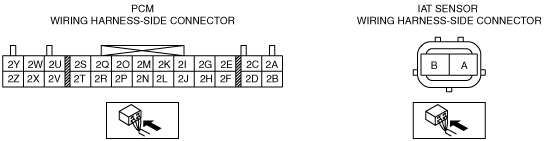

Open circuit
―  IAT signal circuit (IAT sensor connector terminal A and PCM connector terminal 2L)
―  GND circuit (IAT sensor connector terminal B and PCM connector terminal 2D)
absggw00000380
Short circuit
―  IAT signal circuit (IAT sensor connector terminal A and PCM connector terminal 2L to GND)

4.  Reconnect the IAT sensor connector.
