CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [G6]

id014095801600

Continuity Inspection

Note

•  Perform the following test only when directed.

1.  Verify that the clutch switch is installed properly.

2.  Disconnect the negative battery cable.

3.  Remove the clutch switch.

4.  Inspect the continuity between the clutch switch terminals A and B.

•  If not as specified, replace the clutch switch.

•  If there is no malfunction, but PID value is out of specification, inspect for the following:

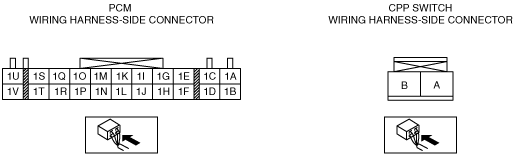

absggw00000389

absggw00001477

arnffw00000858

Open Circuit

―  Power circuit (Clutch switch connector terminal A and PCM connector terminal 1V through common connector)

―  GND circuit (Clutch switch connector terminal B and GND)

Short Circuit

―  Power circuit (Clutch switch connector terminal A and PCM connector terminal 1V to GND)

Neutral Switch

―  The neutral switch operation and related harnesses continuity.

5.  Repair or replace faulty areas.

6.  Install the clutch switch.

7.  Connect the negative battery cable.
