CRANKSHAFT POSITION (CKP) SENSOR OPERATION [WLT-1, WLT-2]
id014096016100

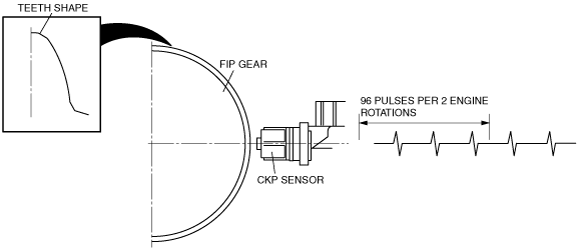

• The CKP sensor is the magnetic pickup type, and is installed in the timing gear case.
• Because the FIP gear consists of 96 teeth, the CKP sensor inputs 96 pulses (sine wave) per 2 engine rotations to the PCM.
