ACCELERATOR PEDAL POSITION (APP) SENSOR FUNCTION [WL-3]


id0140b5174700

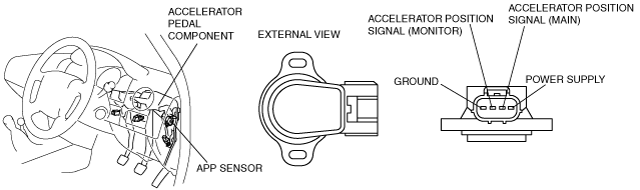

•  The APP sensor is installed on the accelerator pedal, and detects how much the accelerator pedal is being depressed from the change in the resistance value (variable resistance).
dbg140atb459
