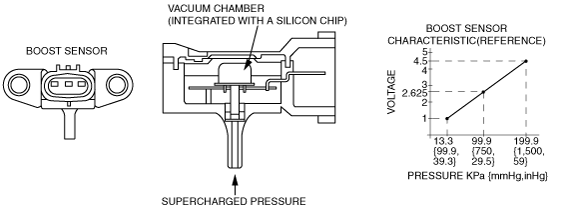

• The boost sensor is installed to the air pipe between the charge air cooler and the intake manifold.
• The boost sensor is filled with crystal (silicon) and it is the semi-conductor pressure sensor which utilizes the characteristic of the electrical resistance that changes when the crystal is pressurized.
*Absolute pressure is the pressure when vacuum is set as 0 kPa {0 mmHg, 0 inHg}.
