PCM REMOVAL/INSTALLATION [WL-3]
id0140b5802400
1. Disconnect the battery negative cable.
2. Remove the driver’s side front side trim.

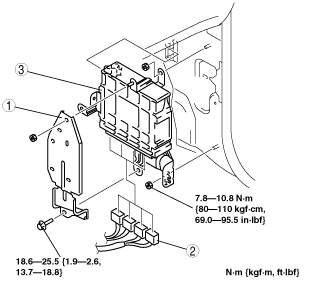

3. Remove in the order indicated in the table.
dbg140bwb500
|
|
1
|
PCM cover
|
|
2
|
PCM connector
|
|
3
|
PCM
|
