FUEL PRESSURE SENSOR CONSTRUCTION/OPERATION [WL-C, WE-C]

id0140b7104600

• Installed on the common rail.

dbg140btb303

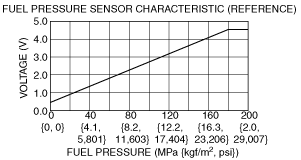

• Converts the fuel pressure in the common rail to a voltage signal and outputs it to the PCM.

dbg140btb304
