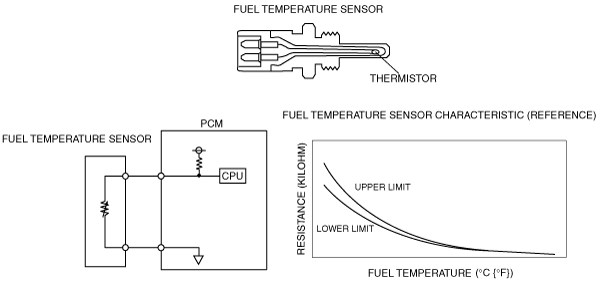

•  Installed to the supply pump.

•  The thermistor type fuel temperature sensor changes resistance according to the fuel temperature.

•  The resistance decreases if the fuel temperature increases and, conversely, increases if the fuel temperature decreases.
