VEHICLE HEIGHT ADJUSTMENT [4x2]
id0211008005a2
-
Caution
-
• If the vehicle height on a winch or towbar (bullbar or similar accessory) equipped vehicle is adjusted, it is possible that the vehicle height will drop below specification again or the tires will be subject to uneven wear. Without adjusting the vehicle height, adjust only the difference between the left and right sides and perform a wheel alignment to specification.
1. Place the vehicle on level ground.
2. Inspect the front and rear tire pressure and adjust it as necessary.
3. Measure the distance from the center of each front wheel to the fender brim.
-
Standard vehicle height
-
Except high clearance model: 416—456 mm {16.4—17.9 in}
High clearance model (Regular cab and Freestyle cab): 512—552 mm {20.2—21.7 in}
High clearance model (Double cab): 502—542 mm {19.8—21.3 in}
-
Left/right difference
-
10 mm {0.39 in} max.
-
Caution
-
• Adjust the vehicle height at the left and right wheels at the same time. Otherwise, the vehicle height may not be adjusted correctly.

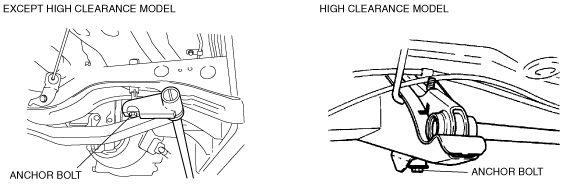

4. If the difference between left and right is not within the specification, adjust the vehicle height by turning the torsion bar spring anchor bolt.
5. Move the vehicle forward and back to seat each part.
6. Verify that the vehicle height is within the standard.
-
• If not, readjust the vehicle height.
