1. Place the vehicle on level ground.
2. Inspect the front and rear tire pressure and adjust it if necessary.

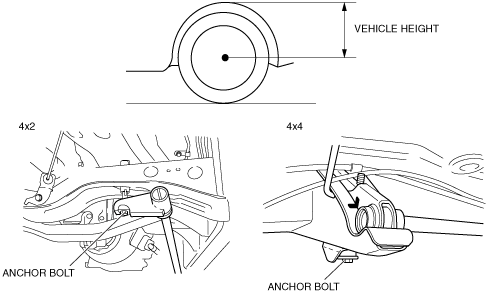

3. Measure the distance form the center of each front wheel to the fender brim.
4x2 (Except high clearance model): 416—456 mm {16.4—17.9 in}
4x2 (High clearance model): 512—552 mm {20.2—21.7 in}
4x4 (Freestyle cab): 512—552 mm {20.2—21.7 in}
4x4 (Double cab): 502—542 mm {19.8—21.3 in}
*Difference between left and right: 10 mm {0.39in} max.
4. If the difference between left and right is not within the specification, adjust the vehicle height by turning the torsion bar spring anchor bolt.
