FRONT STABILIZER REMOVAL/INSTALLATION [4x2 (HIGH CLEARANCE MODEL), 4x4]

id0213008004a6

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

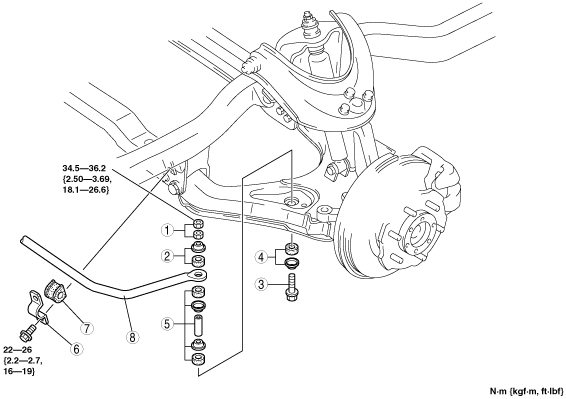

absggw00001664

1

Nut

(See TORSION BAR SPRING AND LOWER ARM REMOVAL/INSTALLATION [4x2 (EXCEPT HIGH CLEARANCE MODEL)].)

2

Retainer and bushing

3

Bolt

4

Retainer and bushing

5

Retainer, bushing, and spacer

6

Stabilizer bracket

7

Stabilizer bushing

8

Front stabilizer

1	Nut (See TORSION BAR SPRING AND LOWER ARM REMOVAL/INSTALLATION [4x2 (EXCEPT HIGH CLEARANCE MODEL)].)
2	Retainer and bushing
3	Bolt
4	Retainer and bushing
5	Retainer, bushing, and spacer
6	Stabilizer bracket
7	Stabilizer bushing
8	Front stabilizer
