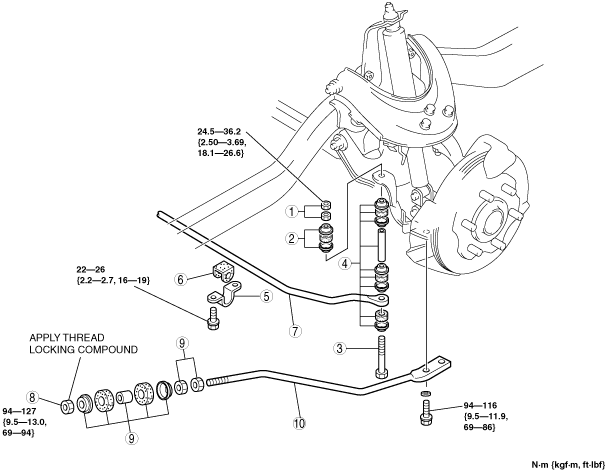

FRONT STABILIZER AND TENSION ROD REMOVAL/INSTALLATION [4x2 (EXCEPT HIGH CLEARANCE MODEL)]
id0213008029a3
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
absggw00001665
|
|
1
|
Nut
|
|
2
|
Retainer
|
|
3
|
Bolt
|
|
4
|
Bushing, retainer and spacer
|
|
5
|
Stabilizer bracket
|
|
6
|
Stabilizer bushing
|
|
7
|
Front stabilizer
|
|
8
|
Tension rod nut
|
|
9
|
Bushing and retainer
|
|
10
|
Tension rod
|
Tension Rod Nut Installation Note
1. Tighten the tension rod nuts so that length L is 98.5 mm {3.88 in}.
absggw00001666
|
