FRONT SHOCK ABSORBER REMOVAL/INSTALLATION

id021300803100

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

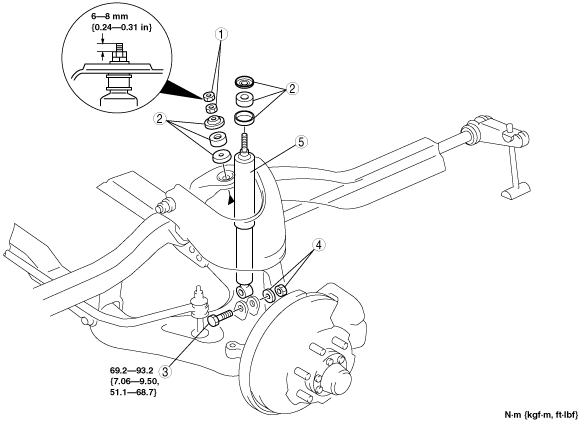

dbg0213zwb001

1	Nut (See Nut Installation Note.)
2	Retainer, bushing
3	Bolt
4	Washer and nut
5	Front shock absorber

Nut Installation Note

1.  Tighten the nut so that the exposed thread of the shock absorber piston is 6—8 mm {0.24—0.31 in}.

dbg0213zwb002
